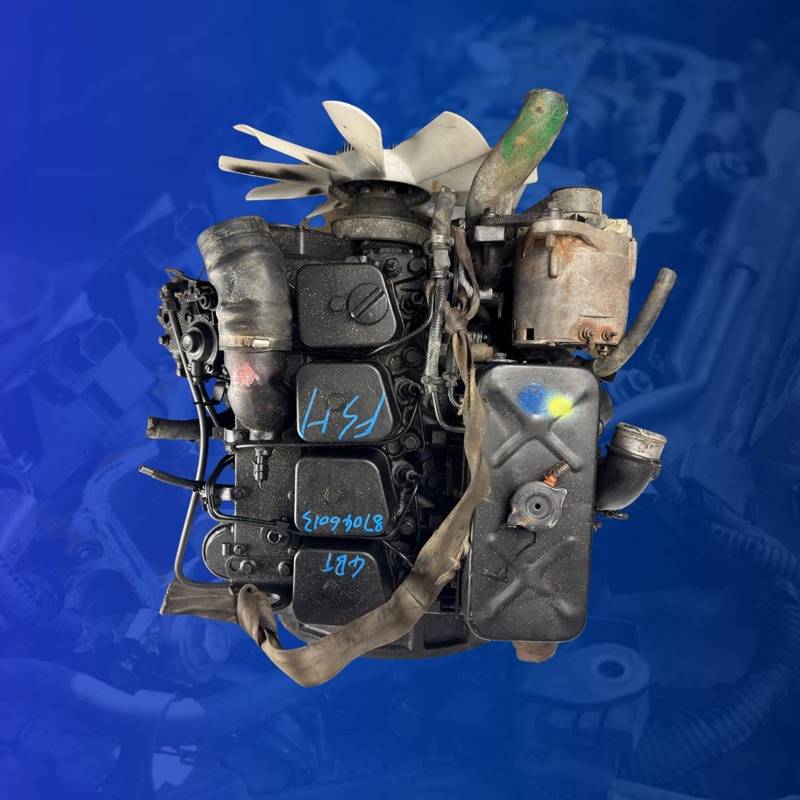

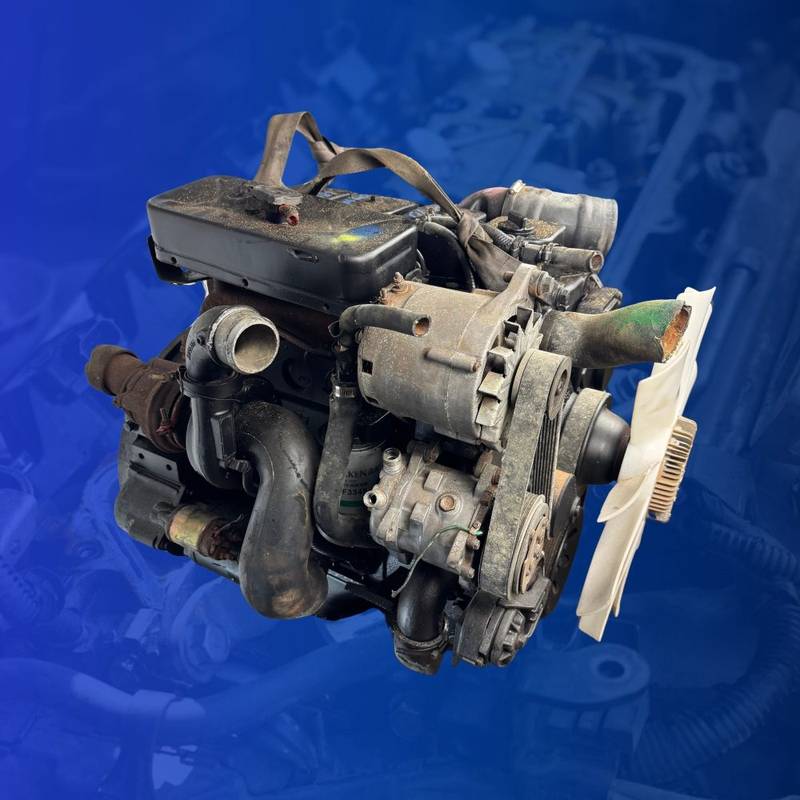

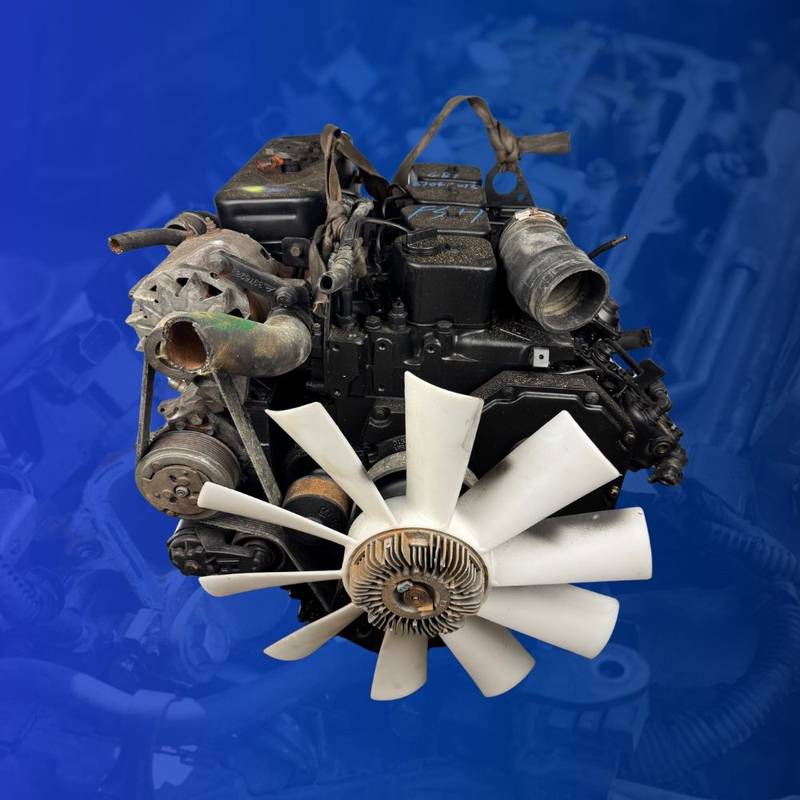

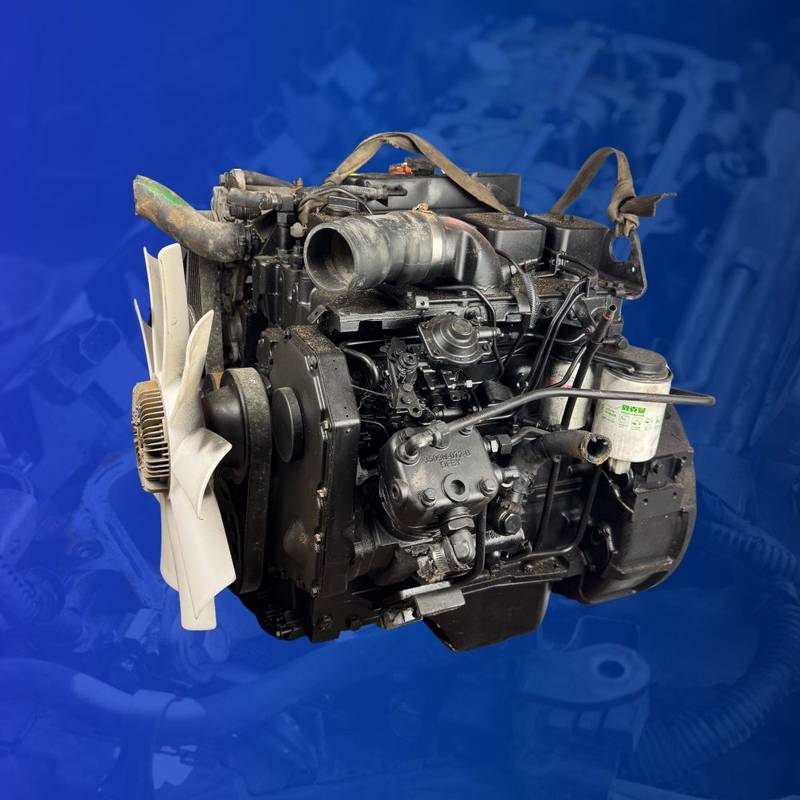

Cummins 3.9 4BT Small Pump Turbo Diesel Truck Engine

Cummins 4BT Small Pump Engine for Sale in Pretoria Cummins 4BT small pump engine for sale in Pretoria from LRD Pretoria is a compact mechanical diesel replacement option for selected commercial trucks, machinery and specialist conversion projects. The Cummins 4BT belongs to the proven B Series engine family. It uses an inline four-cylinder layout, has an approximate 3.9-litre displacement and is commonly found in turbocharged mechanical-injection configurations. This stock unit is described as the small-pump version, but that description alone is not enough to confirm compatibility. View more replacement engines available from LRD Pretoria or contact the LRD Pretoria sales team with your engine details.

Cummins 4BT Engine Details

• Manufacturer: Cummins
• Engine family: B Series
• Engine designation: 4BT / B3.9
• Capacity: Approximately 3.9 litres
• Configuration: Inline four-cylinder, four-stroke diesel
• Aspiration: Turbocharged
• Fuel system: Mechanical injection; stock described as a small-pump configuration
• Common use: Selected trucks, industrial equipment and conversion applications
• Condition: Imported used replacement engine
• Price: R52,500
• Location: Pretoria, Gauteng
• Delivery: Available to customers across South Africa
• Warranty: Subject to LRD Pretoria's current warranty and installation conditions

Why the Engine Serial and CPL Numbers Matter

Cummins 4BT engines were supplied in different ratings and equipment configurations. The engine serial number and Control Parts List number help identify the original build specification. Two engines may both be called 4BT but still differ in their injection pumps, turbochargers, manifolds, sumps, flywheel housings, front accessories and mounting arrangements. Before ordering, send LRD Pretoria:

• The Cummins engine serial number
• The CPL number from the engine dataplate
• The truck or machine make, model and year
• The chassis or VIN number where applicable
• Clear photographs of the complete existing engine
• Close-up photographs of the fuel pump and dataplate
• Bellhousing, flywheel and gearbox details
• Engine-mount and sump photographs

What Does Small Pump Mean on a Cummins 4BT?

Small pump is a practical trade description used to distinguish certain mechanical fuel-pump layouts. It should not be treated as a complete engine code. Pump make, pump number, linkage position and fuel-line layout must be compared directly with the original engine before the sale is confirmed.

Installation Checks Before the Engine Is Fitted

A qualified diesel technician should identify the cause of the previous engine failure and inspect the supporting systems before installation. The radiator, oil cooler, fuel supply, turbo plumbing, exhaust, mounts, clutch or torque converter, wiring and starting system must all be compatible and serviceable. New filters, correct-grade oil, coolant and other required service items should be fitted during installation. Failure to correct overheating, oil-pressure or fuel-contamination problems can damage the replacement engine and may affect warranty coverage.

Request a Cummins 4BT Quote from LRD Pretoria

Contact LRD Pretoria with the Cummins serial number, CPL number, pump photographs and application details. The team can confirm current stock, included components, compatibility requirements, collection arrangements and nationwide delivery. Request a Cummins 4BT engine quotation from LRD Pretoria.
